17 Supervisor Software Events Extension (EID #0x535345 "SSE")

The SBI Supervisor Software Events (SSE) extension provides a mechanism to inject software events from an SBI implementation to supervisor software such that it preempts all other traps and interrupts. The supervisor software will receive software events only on harts which are ready to receive them. A software event is delivered only after supervisor software has registered an event handler and enabled the software event.

The software events are one of two types: local or global. A local software event is local to a hart and can be handled only on that hart whereas a global software event is a system event and can be handled by any participating hart.

17.1 Software Event Identification

Each software event is identified by a unique 32-bit unsigned integer called event_id. The event_id space is divided into multiple 16-bit ranges where each 16-bit range is encoded as follows:

    event_id[14:14] = Platform (0: Standard event, 1: Platform specific event)
    event_id[15:15] = Global (0: Local event, 1: Global event)

The Table 79 below show the complete event_id space along with standard events based on the above encoding.

Table 79. SSE Event ID Space

Software Event ID	Description
Range 0x00000000 - 0x0000ffff
0x00000000	Local High Priority RAS event
0x00000001	Local double trap event
0x00000002 - 0x00003fff	Local events reserved for future use
0x00004000 - 0x00007fff	Platform specific local events
0x00008000	Global High Priority RAS event
0x00008001 - 0x0000bfff	Global events reserved for future use
0x0000c000 - 0x0000ffff	Platform specific global events
Range 0x00010000 - 0x0001ffff
0x00010000	Local PMU overflow event (depends on overflow IRQ)
0x00010001 - 0x00013fff	Local events reserved for future use
0x00014000 - 0x00017fff	Platform specific local events
0x00018000 - 0x0001bfff	Global events reserved for future use
0x0001c000 - 0x0001ffff	Platform specific global events
…​
Range 0x00100000 - 0x0010ffff
0x00100000	Local Low Priority RAS event
0x00100001 - 0x00103fff	Local events reserved for future use
0x00104000 - 0x00107fff	Platform specific local events
0x00108000	Global Low Priority RAS event
0x00108001 - 0x0010bfff	Global events reserved for future use
0x0010c000 - 0x0010ffff	Platform specific global events
…​
Range 0xffff0000 - 0xffffffff
0xffff0000	Software injected local event
0xffff0001 - 0xffff3fff	Local events reserved for future use
0xffff4000 - 0xffff7fff	Platform specific local events
0xffff8000	Software injected global event
0xffff8001 - 0xffffbfff	Global events reserved for future use
0xffffc000 - 0xffffffff	Platform specific global events

note

Local double trap event: For SSE double trap events to be generated, supervisor software MUST enable the double trap feature (DOUBLE_TRAP) via the Firmware Feature extension (Section 18).

17.2 Software Event States

At any point in time, a software event MUST be in one of the following states:

1. UNUSED - Software event is not used by supervisor software
2. REGISTERED - Supervisor software has provided an event handler for the software event
3. ENABLED - Supervisor software is ready to handle the software event
4. RUNNING - Supervisor software is handling the software event

A global software event MUST be registered and enabled only once by any hart. By default, a global software event will be routed to any hart which is ready to receive software events but supervisor software can provide a preferred hart to handle this software event. The state of a global software event MUST be common to all harts.

note

The preferred hart assigned to a global software event by the supervisor software is only a hint about supervisor software’s preference. The SBI implementation may choose a different hart for handling the global software event to avoid an inter-processor interrupt.

A local software event MUST be registered and enabled by all harts which want to handle this event. A local event is delivered to a hart only when the hart is ready to receive software events and the local event is registered and enabled on that hart. The state of a local software event MUST be tracked separately for each hart.

note

If a software event in RUNNING state is signalled by the event source again, the software event will be taken only after the running event handler completes, provided that supervisor software doesn’t disable the software event upon completion.

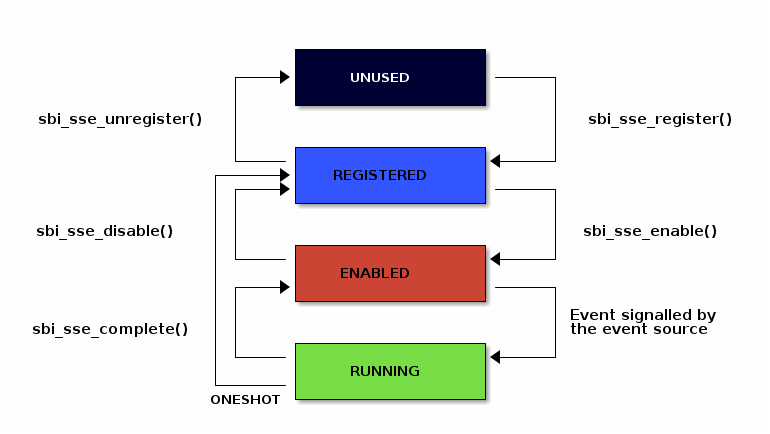

The Figure 4 below shows the state transitions of a software event.

Figure 4. SBI SSE State Machine

17.3 Software Event Priority

Each software event has an associated priority (referred as event_priority) which is used by an SBI implementation to select a software event for injection when multiple software events are pending on the same hart.

The priority of a software event is a 32-bit unsigned integer where lower value means higher priority. By default, all software events have event priority as zero.

If two or more software events have same priority on a given hart then the SBI implementation must use event_id for tie-breaking where lower event_id has higher priority.

A higher priority software event, unless disabled by supervisor software, always preempts a lower priority software event in RUNNING state on the same hart. Once a higher priority software event is completed, the previous lower priority software event will be resumed.

17.4 Software Event Attributes

A software event can have various XLEN bits wide attributes associated to it where each event attribute is identified by a unique 32-bit unsigned integer called attr_id. A software event attribute has Read-Only or Read-Write access permissions. The Table 80 below provides a list event attributes.

Table 80. SSE Event Attributes

Attribute Name	(attr_id)	(RO / RW)	Description
STATUS	0x00000000	RO	bit[1:0]: Event state with following possible values: 0 = UNUSED, bit[2:2]: Event pending status (1 = Pending and 0 = Not Pending). This flag is set by the event source and it is cleared when the software event bit[3:3]: Event injection using the sbi_sse_inject call (1 = Allowed The reset value of this attribute is zero.
PRIORITY	0x00000001	RW	Software event priority where only lower 32-bits of the value are used and other bits are always set to zero. This attribute can be updated only when The reset value of this attribute is zero.
CONFIG	0x00000002	RW	Additional configuration of the software event. This attribute can be updated only when the software event is in UNUSED or REGISTERED The reset value of this attribute is zero.
PREFERRED_HART	0x00000003	RO (local)	Hart ID of the preferred hart that should handle the global software event. The value of this attribute must always be valid hart ID for both local and global software events. This attribute is read-only for local software events and for global software events it can be updated only when the software event The reset value of this attribute is SBI implementation specific.
ENTRY_PC	0x00000004	RO	Entry program counter value for handling the software event in supervisor The reset value of this attribute is zero.
ENTRY_ARG	0x00000005	RO	Entry argument (or parameter) value for handling the software event in supervisor software. This attribute value is passed to the supervisor The reset value of this attribute is zero.
INTERRUPTED_SEPC	0x00000006	RW	Interrupted sepc CSR value which is saved before handling the software event in supervisor software. This attribute can be updated only when the software event is in RUNNING state. For global events, only the hart The reset value of this attribute is zero.
INTERRUPTED_FLAGS	0x00000007	RW	Interrupted flags which are saved before handling the software event in supervisor software. This attribute can be updated only when the software event is in RUNNING state. For global events, only the hart executing the event handler can modify it. The encoding of this event bit[4:4]: interrupted sstatus.SPELP CSR bit value if Zicfilp extension bit[5:5]: interrupted sstatus.SDT CSR bit value if Ssdbltrp extension
INTERRUPTED_A6	0x00000008	RW	Interrupted A6 GPR value which is saved before handling the software event in supervisor software. This attribute can be updated only when the software event is in RUNNING state. For global events, only the hart executing the The reset value of this attribute is zero.
INTERRUPTED_A7	0x00000009	RW	Interrupted A7 GPR value which is saved before handling the software event in supervisor software. This attribute can be updated only when the software event is in RUNNING state. For global events, only the hart executing the The reset value of this attribute is zero.
RESERVED	> 0x00000009	---	Reserved for future use.

17.5 Software Event Injection

To inject a software event on a hart, the SBI implementation must do the following:

1. Save interrupted state of supervisor mode

2. Set INTERRUPTED_FLAGS event attribute as follows:

3. INTERRUPTED_FLAGS[0:0] = interrupted sstatus.SPP CSR bit value

4. INTERRUPTED_FLAGS[1:1] = interrupted sstatus.SPIE CSR bit value

5. if H-extension is available to supervisor mode:

6. Set INTERRUPTED_FLAGS[2:2] = interrupted hstatus.SPV CSR bit value

7. Set INTERRUPTED_FLAGS[3:3] = interrupted hstatus.SPVP CSR bit value

8. else

9. Set INTERRUPTED_FLAGS[3:2] = zero

10. if Zicfilp extension is available to supervisor mode:

11. INTERRUPTED_FLAGS[4:4] = interrupted sstatus.SPELP CSR bit value

12. else

13. INTERRUPTED_FLAGS[4:4] = zero

14. if Ssdbltrp extension is available to supervisor mode:

15. INTERRUPTED_FLAGS[5:5] = interrupted sstatus.SDT CSR bit value

16. else

17. INTERRUPTED_FLAGS[5:5] = zero

18. Set INTERRUPTED_FLAGS[XLEN-1:6] = zero

19. Set INTERRUPTED_SEPC event attribute = interrupted sepc CSR

20. Set INTERRUPTED_A6 event attribute = interrupted A6 GPR value

21. Set INTERRUPTED_A7 event attribute = interrupted A7 GPR value

22. Redirect execution to supervisor event handler

23. Set A6 GPR = Current Hart ID

24. Set A7 GPR = ENTRY_ARG event attribute value

25. Set sepc = Interrupted program counter value

26. Set sstatus.SPP CSR bit = interrupted privilege mode

27. Set sstatus.SPIE CSR bit = sstatus.SIE CSR bit value

28. Set sstatus.SIE CSR bit = zero

29. if Zicfilp extension is available to supervisor mode:

30. Set sstatus.SPELP = interrupted landing pad state

31. Set landing pad state = NO_LP_EXPECTED

32. if H-extension is available to supervisor mode:

33. Set hstatus.SPV CSR bit = interrupted virtualization state

34. if hstatus.SPV CSR bit == 1:

35. Set hstatus.SPVP CSR bit = sstatus.SPP CSR bit value

36. if Ssdbltrp extension is available to supervisor mode:

37. Set S-mode-disable-trap = 1

38. Set virtualization state = OFF

39. Set privilege mode = S-mode

40. Set program counter = ENTRY_PC event attribute value

17.6 Software Event Completion

After handling the software event on a hart, the supervisor software must notify the SBI implementation about completion of event handling using sbi_sse_complete call. The SBI implementation must do the following to resume the interrupted state for a completed event:

1. Set program counter = sepc CSR value

2. Set privilege mode = sstatus.SPP CSR bit value

3. if Ssdbltrp extension is available to supervisor mode:

4. Set sstatus.SDT CSR bit = INTERRUPTED_FLAGS[5:5] event attribute value

5. if Zicfilp extension is available to supervisor mode:

6. Set sstatus.SPELP CSR bit = INTERRUPTED_FLAGS[4:4] event attribute value

7. if H-extension is available to supervisor mode:

8. Set virtualization state = hstatus.SPV CSR bit value

9. Set hstatus.SPV CSR bit = INTERRUPTED_FLAGS[2:2] event attribute value

10. Set hstatus.SPVP CSR bit = INTERRUPTED_FLAGS[3:3] event attribute value

11. Set sstatus.SIE CSR bit = sstatus.SPIE CSR bit

12. Set sstatus.SPIE CSR bit = INTERRUPTED_FLAGS[1:1] event attribute value

13. Set sstatus.SPP CSR bit = INTERRUPTED_FLAGS[0:0] event attribute value

14. Set A7 GPR = INTERRUPTED_A7 event attribute value

15. Set A6 GPR = INTERRUPTED_A6 event attribute value

16. Set sepc = INTERRUPTED_SEPC event attribute value

If the supervisor software wishes to resume from a different location, it can update the event attributes of the software event before calling sbi_sse_complete.

17.7 Function: Read software event attributes (FID #0)

struct sbiret sbi_sse_read_attrs(uint32_t event_id,
                                 uint32_t base_attr_id, uint32_t attr_count,
                                 unsigned long output_phys_lo,
                                 unsigned long output_phys_hi)

Read a range of event attribute values from a software event.

The event_id parameter specifies the software event ID whereas base_attr_id and attr_count parameters specifies the range of event attribute IDs.

The event attribute values are written to a output shared memory which is specified by the output_phys_lo and output_phys_hi parameters where:

• The output_phys_lo parameter MUST be XLEN / 8 bytes aligned
• The size of output shared memory is assumed to be (XLEN / 8) * attr_count
• The value of event attribute with ID base_attr_id + i should be written at offset (XLEN / 8) * (base_attr_id + i)

In case of an error, the possible error codes are shown in the Table 81 below:

Table 81. SSE Event Attributes Read Errors

Error code	Description
SBI_SUCCESS	Event attribute values read successfully.
SBI_ERR_NOT_SUPPORTED	event_id is not reserved and valid, but the platform does not support it due to one or more missing dependencies (Hardware or SBI implementation).
SBI_ERR_INVALID_PARAM	event_id is invalid or attr_count is zero.
SBI_ERR_BAD_RANGE	One of the event attribute IDs in the range specified by base_attr_id and attr_count is reserved.
SBI_ERR_INVALID_ADDRESS	The shared memory pointed to by the output_phys_lo and output_phys_hi parameters does not satisfy the requirements described in Section 3.2.
SBI_ERR_FAILED	The read failed for unspecified or unknown other reasons.

17.8 Function: Write software event attributes (FID #1)

struct sbiret sbi_sse_write_attrs(uint32_t event_id,
                                 uint32_t base_attr_id, uint32_t attr_count,
                                 unsigned long input_phys_lo,
                                 unsigned long input_phys_hi)

Write a range of event attribute values to a software event.

The event_id parameter specifies the software event ID whereas base_attr_id and attr_count parameters specifies the range of event attribute IDs.

The event attribute values are read from a input shared memory which is specified by the input_phys_lo and input_phys_hi parameters where:

• The input_phys_lo parameter MUST be XLEN / 8 bytes aligned
• The size of input shared memory is assumed to be (XLEN / 8) * attr_count
• The value of event attribute with ID base_attr_id + i should be read from offset (XLEN / 8) * (base_attr_id + i)

For local events, the event attributes are updated only for the calling hart. For global events, the event attributes are updated for all the harts.

The possible error codes returned in sbiret.error are shown in Table 82 below. In case of errors with attribute values, the first error encountered (based on attributes ID order) is returned.

Table 82. SSE Event Attributes Write Errors

Error code	Description
SBI_SUCCESS	Event attribute values written successfully.
SBI_ERR_NOT_SUPPORTED	event_id is not reserved and valid, but the platform does not support it due to one or more missing dependencies (Hardware or SBI implementation).
SBI_ERR_INVALID_PARAM	- event_id is valid but one of the attribute values violates the legal values described in Table 80.
SBI_ERR_DENIED	event_id is valid but one of the attributes is read-only.
SBI_ERR_INVALID_STATE	event_id is valid but one of the attribute values violates the state rules described in Table 80.
SBI_ERR_BAD_RANGE	One of the event attribute IDs in the range specified by base_attr_id and attr_count is reserved.
SBI_ERR_INVALID_ADDRESS	The shared memory pointed to by the input_phys_lo and input_phys_hi parameters does not satisfy the requirements described in Section 3.2.
SBI_ERR_FAILED	The write failed for unspecified or unknown other reasons.

17.9 Function: Register a software event (FID #2)

struct sbiret sbi_sse_register(uint32_t event_id,
                               unsigned long handler_entry_pc,
                               unsigned long handler_entry_arg)

Register an event handler for the software event.

The event_id parameter specifies the event ID for which an event handler is being registered. The handler_entry_pc parameter MUST be 2-bytes aligned and specifies the ENTRY_PC event attribute of the software event whereas the handler_entry_arg parameter specifies the ENTRY_ARG event attribute of the software event.

For local events, the event is registered only for the calling hart. For global events, the event is registered for all the harts.

The event MUST be in UNUSED state otherwise this function will fail.

note

It is advisable to use different values for handler_entry_arg for different events because higher priority events preempt lower priority events.

Upon success, the event state moves from UNUSED to REGISTERED. In case of an error, possible error codes are listed in Table 83 below.

Table 83. SSE Event Register Errors

Error code	Description
SBI_SUCCESS	Event handler is registered successfully.
SBI_ERR_NOT_SUPPORTED	event_id is not reserved and valid, but the platform does not support it due to one or more missing dependencies (Hardware or SBI implementation).
SBI_ERR_INVALID_STATE	event_id is valid but the event is not in UNUSED state.
SBI_ERR_INVALID_PARAM	event_id is invalid or handler_entry_pc is not 2-bytes aligned.

17.10 Function: Unregister a software event (FID #3)

struct sbiret sbi_sse_unregister(uint32_t event_id)

Unregister the event handler for given event_id.

For local events, the event is unregistered only for the calling hart. For global events, the event is unregistered for all the harts.

The event MUST be in REGISTERED state otherwise this function will fail.

Upon success, the event state moves from REGISTERED to UNUSED. In case of an error, possible error codes are listed in Table 84 below.

Table 84. SSE Event Unregister Errors

Error code	Description
SBI_SUCCESS	Event handler is unregistered successfully.
SBI_ERR_NOT_SUPPORTED	event_id is not reserved and valid, but the platform does not support it due to one or more missing dependencies (Hardware or SBI implementation).
SBI_ERR_INVALID_STATE	event_id is valid but the event is not in REGISTERED state.
SBI_ERR_INVALID_PARAM	event_id is invalid.

17.11 Function: Enable a software event (FID #4)

struct sbiret sbi_sse_enable(uint32_t event_id)

Enable the software event specified by the event_id parameter.

For local events, the event is enabled only for the calling hart. For global events, the event is enabled for all the harts.

The event MUST be in REGISTERED state otherwise this function will fail.

Upon success, the event state moves from REGISTERED to ENABLED. In case of an error, possible error codes are listed in Table 85 below.

Table 85. SSE Event Enable Errors

Error code	Description
SBI_SUCCESS	Event is successfully enabled.
SBI_ERR_NOT_SUPPORTED	event_id is not reserved and valid, but the platform does not support it due to one or more missing dependencies (Hardware or SBI implementation).
SBI_ERR_INVALID_PARAM	event_id is not valid.
SBI_ERR_INVALID_STATE	event_id is valid but the event is not in REGISTERED state.

17.12 Function: Disable a software event (FID #5)

struct sbiret sbi_sse_disable(uint32_t event_id)

Disable the software event specified by the event_id parameter.

For local events, the event is disabled only for the calling hart. For global events, the event is disabled for all the harts.

The event MUST be in ENABLED state otherwise this function will fail.

Upon success, the event state moves from ENABLED to REGISTERED. In case of an error, possible error codes are listed in Table 86 below.

Table 86. SSE Event Disable Errors

Error code	Description
SBI_SUCCESS	Event is successfully disabled.
SBI_ERR_NOT_SUPPORTED	event_id is not reserved and valid, but the platform does not support it due to one or more missing dependencies (Hardware or SBI implementation).
SBI_ERR_INVALID_PARAM	event_id is not valid.
SBI_ERR_INVALID_STATE	event_id is valid but the event is not in ENABLED state.

17.13 Function: Complete software event handling (FID #6)

struct sbiret sbi_sse_complete(void)

Complete the supervisor event handling for the highest priority event in RUNNING state on the calling hart.

If there were no events in RUNNING state on the calling hart then this function does nothing and returns SBI_SUCCESS otherwise it moves the highest priority event in RUNNING state to:

• REGISTERED if the event is configured as one-shot (see the CONFIG attribute in Table 80.)
• ENABLED state otherwise

It then resumes the interrupted supervisor state as described in Section 17.6.

17.14 Function: Inject a software event (FID #7)

struct sbiret sbi_sse_inject(uint32_t event_id, unsigned long hart_id)

The supervisor software can inject a software event with this function. The event_id paramater refers to the ID of the event to be injected.

For local events, the hart_id parameter refers to the hart on which the event is to be injected. For global events, the hart_id parameter is ignored.

An event can only be injected if it is allowed by the event attribute as described in Table 80.

If an event is injected from within an SSE event handler, if it is ready to be run, it will be handled according to the priority rules described in Section 17.3:

• If it has a higher priority than the one currently running, then it will be handled immediately, effectively preempting the currently running one.
• If it has a lower priority, it will be run after the one that is currently running completes.

In case of an error, possible error codes are listed in Table 87 below.

Table 87. SSE Event Inject Errors

Error code	Description
SBI_SUCCESS	Event is successfully injected.
SBI_ERR_NOT_SUPPORTED	event_id is not reserved and valid, but the platform does not support it due to one or more missing dependencies (Hardware or SBI implementation).
SBI_ERR_INVALID_PARAM	event_id or hart_id is invalid.
SBI_ERR_FAILED	The injection failed for unspecified or unknown other reasons.

17.15 Function: Unmask software events on a hart (FID #8)

struct sbiret sbi_sse_hart_unmask(void)

Start receiving (or unmask) software events on the calling hart. In other words, the calling hart is ready to receive software events from the SBI implementation.

The software events are masked initially on all harts so the supervisor software must explicitly unmask software events on relevant harts at boot-time.

In case of an error, possible error codes are listed in Table 88 below.

Table 88. SSE Hart Unmask Errors

Error code	Description
SBI_SUCCESS	Software events unmasked successfully on the calling hart.
SBI_ERR_ALREADY_STARTED	Software events were already unmasked on the calling hart.
SBI_ERR_FAILED	The request failed for unspecified or unknown other reasons.

17.16 Function: Mask software events on a hart (FID #9)

struct sbiret sbi_sse_hart_mask(void)

Stop receiving (or mask) software events on the calling hart. In other words, the calling hart will no longer be ready to receive software events from the SBI implementation.

In case of an error, possible error codes are listed in Table 89 below.

Table 89. SSE Hart Mask Errors

Error code	Description
SBI_SUCCESS	Software events masked successfully on the calling hart.
SBI_ERR_ALREADY_STOPPED	Software events were already masked on the calling hart.
SBI_ERR_FAILED	The request failed for unspecified or unknown other reasons.

17.17 Function Listing

Table 90. SSE Function List

Function Name	SBI Version	FID	EID
sbi_sse_read_attrs	3.0	0	0x535345
sbi_sse_write_attrs	3.0	1	0x535345
sbi_sse_register	3.0	2	0x535345
sbi_sse_unregister	3.0	3	0x535345
sbi_sse_enable	3.0	4	0x535345
sbi_sse_disable	3.0	5	0x535345
sbi_sse_complete	3.0	6	0x535345
sbi_sse_inject	3.0	7	0x535345
sbi_sse_hart_unmask	3.0	8	0x535345
sbi_sse_hart_mask	3.0	9	0x535345
